Continental 48 states
Our California warehouse
Lightweight · weather-tight
Factory bed rails · no drilling
Fits: 2017–2026 (6.75ft)
Precision-engineered bolt-on fit — no modification required
6061-T6 Aluminum
850 lb
450 lb
~180 lb
Powder-Coated Black
Bolt-On · Bed Rail Clamps
75–90 minutes
13/17mm sockets, Phillips screwdriver, torque wrench
Intermediate · 2 people required
No drilling — uses existing bed holes
Solid aluminum panels, gull-wing access, dual T-slot roof tracks — built for the job site and the long haul.

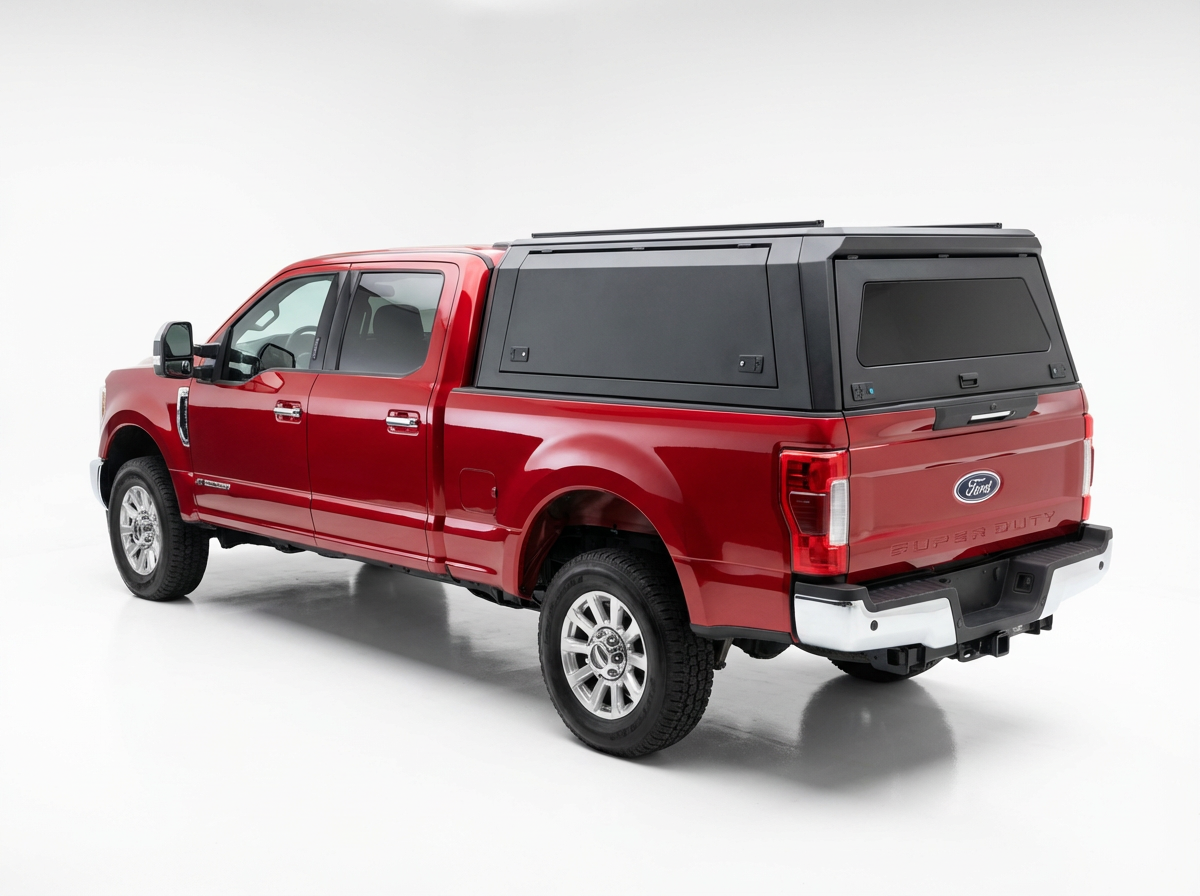

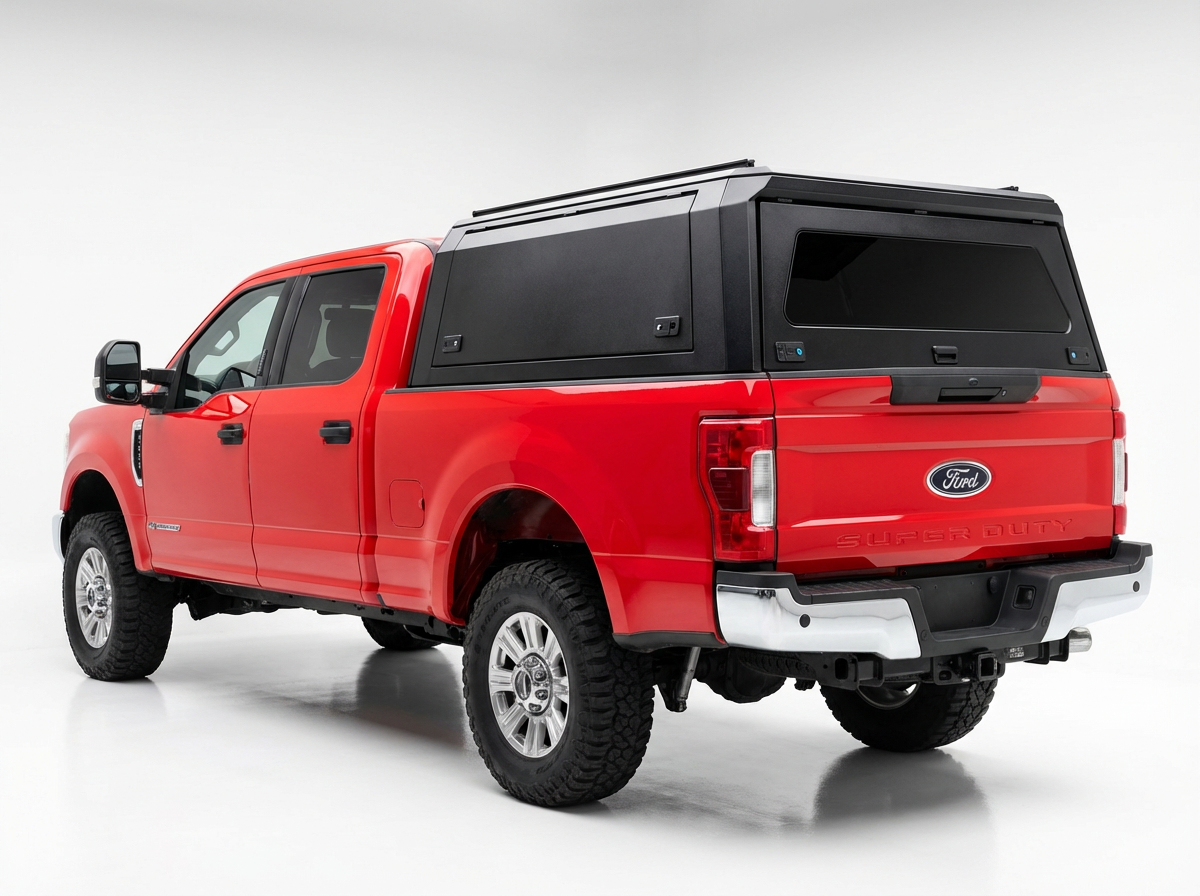

Built for the 2017-2026 Ford Super Duty F-250 and F-350, this aluminum truck cap delivers the strength and durability you need without the weight penalty of traditional steel toppers.
Once installed, your Super Duty looks factory-fitted — purpose-built for the job site, the campsite, or anywhere in between.
No glass. No compromise. Solid aluminum panels keep your tools and gear completely out of sight — maximum security on the job site or in the parking lot. Cleaner lines, lower profile, and no risk of broken glass.
Lighter than steel. Tougher than fiberglass. Won't rust, won't crack — built to outlast your truck.
No glass. No compromise. Solid aluminum panels keep your tools and gear completely out of sight — maximum security on the job site or in the parking lot. Cleaner lines, lower profile, and no risk of broken glass.
Full-length aluminum T-slot rails run the entire roof — strong, clean, and ready for crossbars, cargo carriers, or a rooftop tent. No drilling. Compatible with most universal T-slot systems.
Factory pre-drilled side walls let you mount shelving units, tool organizers, or gear trays directly to both interior walls — no modifications needed. Storage modules sold separately.
Easy Access. Large gull-wing side doors with gas struts allow full access to the front of your truck bed.
Lockable System. Each door has weather-sealed locks with a unified key system for security.
Clamp System. Secure mounting to your 6.75ft bed without drilling holes in your truck bed rails.
Reversible. Can be removed without leaving permanent modifications to your Super Duty.
Flat-Pack Shipping. 6-piece modular design allows efficient shipping and assembly with basic hand tools.
Assembly Time. 1-2 hours for assembly, 0.5-1 hour for installation to truck bed.
Replaceable Panels. Individual panels can be replaced if damaged.
Static Load (Parked). 850 lbs (385 kg) — Rooftop tent compatible when parked.
Dynamic Load (Moving). 450 lbs (205 kg) — Safe load capacity while driving.
Weather Sealing. A multi-point sealing system with precision-fitted EPDM gaskets around all doors creates a fully enclosed, weather-tight interior — keeping cargo dry through heavy rain, car washes, and prolonged moisture exposure.
Rust-Resistant Build. High-strength aluminum alloy construction delivers corrosion resistance several times greater than steel, eliminating rust at the structural level and standing up to road salt, snow, and harsh seasonal cycles.
Cold-Weather Tested. Validated in extreme cold across Canada, maintaining full seal integrity and structural performance in sub-zero temperatures — built for year-round reliability in the most demanding climates.
| Application | Ford F-250 & F-350 Super Duty XL, XLT, Lariat, King Ranch, Platinum, Limited (2017–2026) |
| Bed Fitment | 6.75 ft standard bed |
| Primary Material | 6000-Series Aluminum |
| Finish | Matte Black Powder Coat |
| Side Doors | Solid Aluminum Panels (No Windows) |
| Rear Door | Tinted Tempered Glass |
| Roof Tracks | Dual Full-Length T-Slot Aluminum Tracks |
| Interior Rails | Pre-Drilled Side Mounting Points (Storage Modules Sold Separately) |
| Mounting System | No-Drill Clamp System |
| Weight | ~190 lbs (86 kg) |
Solid aluminum panels keep cargo completely hidden — better security on job sites and in public parking. No glass means no breakage risk.
The cap is designed as a solid-panel build. Window versions are available as a separate model.
Crossbars, cargo carriers, bike racks, rooftop tents — anything with a standard T-slot mount. No drilling required.
Yes. Pre-drilled mounting points on both interior side walls accept bolt-on shelving, tool organizers, and gear trays. Storage modules sold separately.
No. The clamp system secures to your bed rails — fully reversible, no permanent modifications.
1-2 hours to assemble, plus 30-60 minutes to install on your truck.
Yes. Use crossbars on the T-slot tracks — rated for rooftop tents when parked.
Yes. A multi-point EPDM sealing system on all doors, combined with an all-aluminum rust-proof structure, keeps water and dust out in all conditions.
At ~190 lbs, it's lighter than steel alternatives — more payload stays in the bed where it belongs.
— WHO IS TKMAUTO
TKMAUTO focuses on one thing: lightweight aluminum bed caps that bolt onto factory bed rails — no drilling, no body shop. Every cap ships from our Pomona, California warehouse, direct to your driveway in the lower 48.
If you have a fitment question before buying — for your year, trim, or 5.5ft vs 6.5ft bed — email us. We'll confirm before you click ADD TO CART.
Email — info@tkmauto.com
Pomona, California
Every order ships from our CA warehouse via U.S. freight carriers.
Free U.S. Shipping
Continental 48 states. AK, HI, and U.S. territories on quote.
Aluminum Construction
Lightweight, weather-tight panels. DIY bolt-on install.
6 Truck Lines Supported
Ford · Toyota · GMC · Chevrolet · RAM · Jeep — year-specific fitment.
Cap, cross bar, rack platform — engineered as one system. Add all three for a complete overland build.
Most customers complete the install in 75–90 minutes with two people. No drilling is required — the cap secures to your existing bed rail holes with our stainless clamp kit. A printed install guide with torque specs is in the box.
We build both versions on the same 6061-T6 aluminum shell — same load rating, same bolt-on install. The difference is only the side panels:
Windows — tempered sliding glass on the driver and passenger sides. Better for overlanding, camping, pets, or any time you want airflow and outward visibility.
Solid — fully enclosed aluminum panels. Better for job-site tool security or gear you want out of sight and keyed-locked.
This cap is cut for the specific year, make, model, and bed length listed in the fitment box at the top of the page. If your truck matches that spec, the cap is engineered to bolt right on. Short-bed and long-bed versions are not interchangeable.
The shell is 6061-T6 aluminum — corrosion resistance is inherent to the material, so the structure won't rust. The exterior is finished in powder-coated black for UV protection. Even if the powder-coat gets scuffed at a job site, the aluminum underneath stays sound. If you ever have a structural concern, contact us at info@tkmauto.com and we'll work with you directly.
Free freight shipping in the continental US, from our California warehouse via LTL carrier. Delivery requires a signature; the carrier will schedule a window once it reaches your local terminal. A phone number is required at checkout so the freight carrier can reach you to schedule delivery.
Built with 6061-T6 aluminum shell and stainless steel hardware. If you ever have a structural concern with your cap, contact us at info@tkmauto.com and our California team will work with you directly.
